Wall Mount Touch IOT Control Panel 4'' 480x480 For Smart Home

Product Categories

Pipo Technology Co. Ltd.

Contact Now

Brand Name : OEM

Model Number : ICP -4

Certification : CCC/CE/CUSTOM

Place of Origin : SHENZHEN

MOQ : 200

Price : Contact Us Now,For a Detailed Quotation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Sets/month

Delivery Time : 25-65 Days

Packaging Details : Custom Your Idea or neutral Package

Screen Size : 4" IPS Touch Panel 480*480

CPU : PX30 Quad-core Cortex-A35

Touch Panel : Cpactive touch panel

RAM+ROM : 1GB+8GB / 2GB+16GB

Interface : RJ45+Type C+RS485+Reset +Speaker+Speaker

Power suply : POE ,IEEE802.3af / DC 12V/24V / AC 110~240V , 50HZ

Install : In wall & Embedded

Customize Function : Zigbee / Temperature and humidity sensor / Light sensor

Contact Now

Smart Home Wall Mount Touch IOT Control Panel 4'' In Wall Monitor Display In Wall Tablet

Description

Features :

(1) 4" mini touch screen control panel

(2) Quad core Embedded mini touch panel

(3) Running Android 8.1 OS

(4) 480*480 Resolution

(5) Wall mounted , RJ45 port build in

(6) Power supply support AC 110V ~240V , DC 12V and 48V POE

Specification

System	Dimension	84.584.536.2mm
	Display size	4 inch
	CPU	PX30 Quad-core Cortex-A35
	System	Android 8.1
	Resolution	480*480 IPS
	Touch Panel	Cpactive touch panel
	RAM	1G(2G option)
	ROM	8G(16G option)
Network	WIFI	802.11b/g/n
	Blue--tooth	BT 4.0
	Ethernet	10M/100M
Interface	RJ45	Ethernet interface input (RJ-45 cable)
	Type C	Type C *1
	RS485	RS485*1
	Reset	Reset *1
	Speaker	Speaker *1
	Microphone	Microphone *2
	Power suply	POE ,IEEE802.3af
		DC 12V /24V
		AC 110~240V , 50HZ
Customize Function	Light sensor	Light sensor (Option)
	Temperature and humidity sensor	Temperature and humidity sensor (option)
	Zigbee	Tuya zigbee (option)
Media plays	Video	MOV / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
	Audio	MP3 / WMA / WAV / AAC / FLAC / OGG
	Entertainment	Video / Movie / Music / FM online

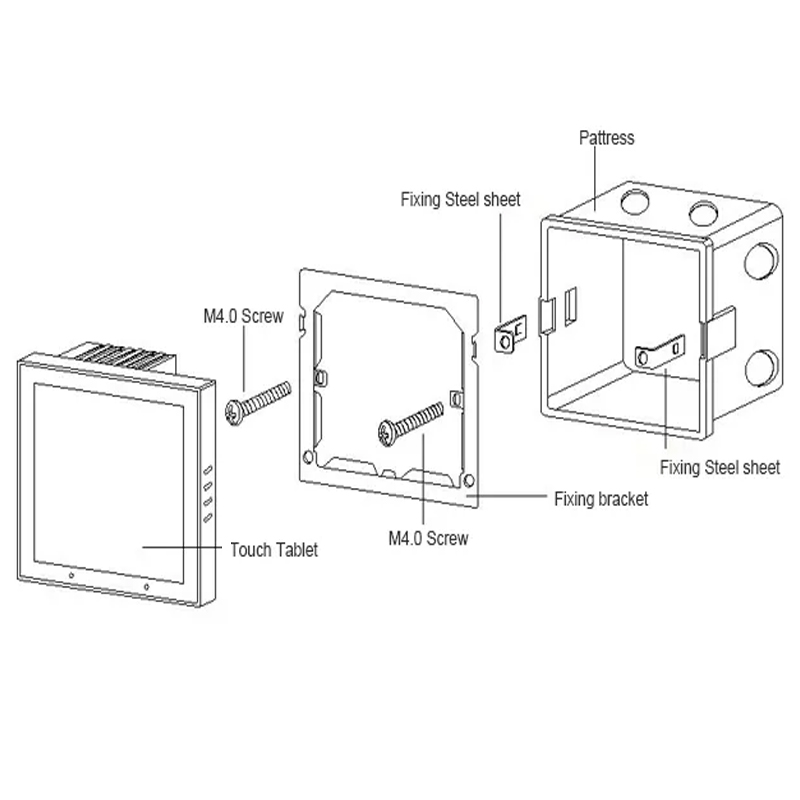

Other	Install	In wall & Embedded
	Color	White color
	Working temperature	.-10°~60°
	Language	Multi-language optional

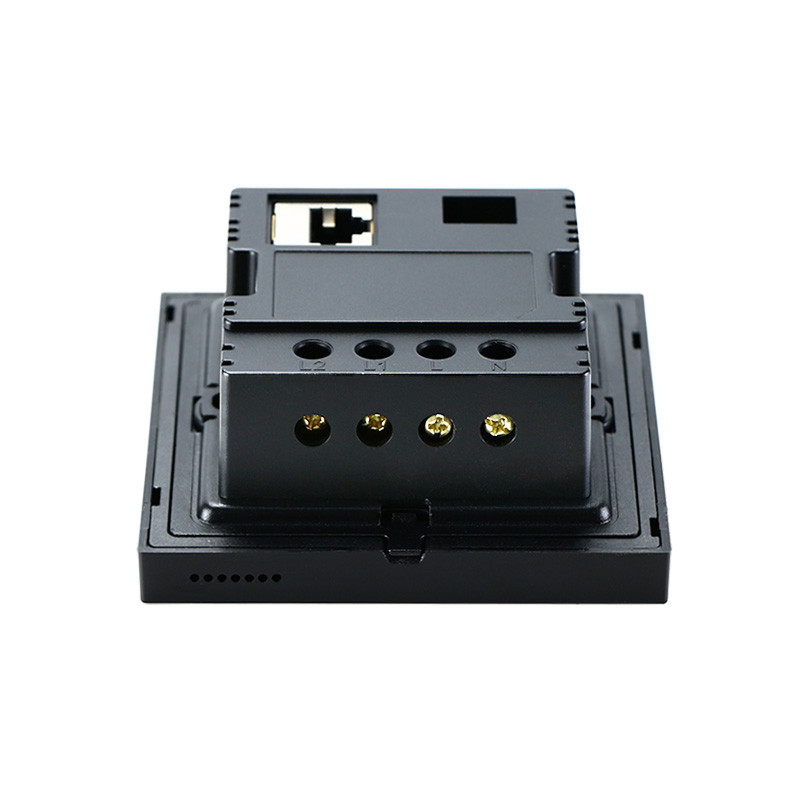

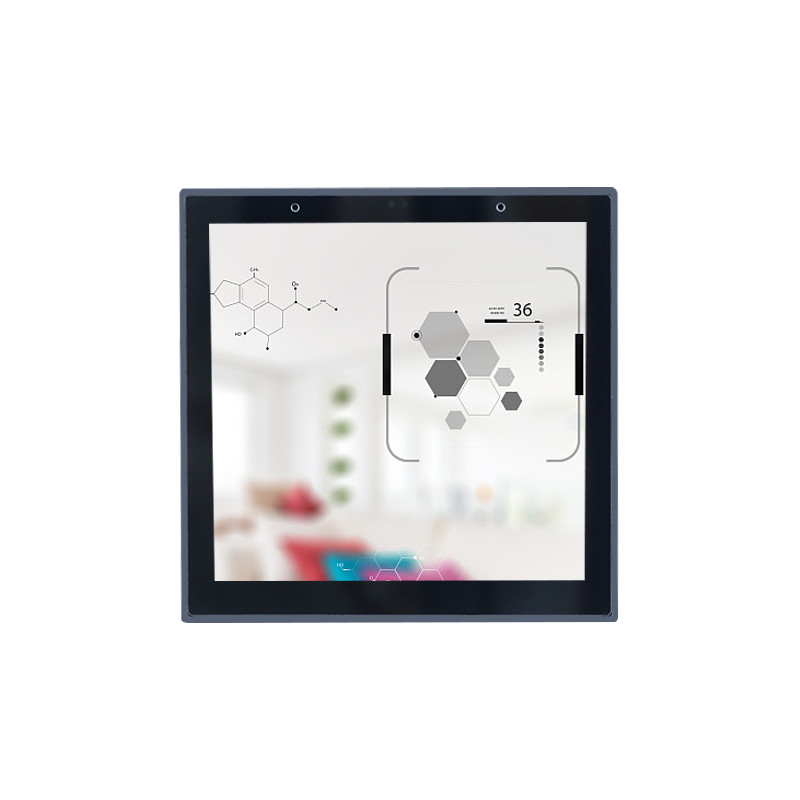

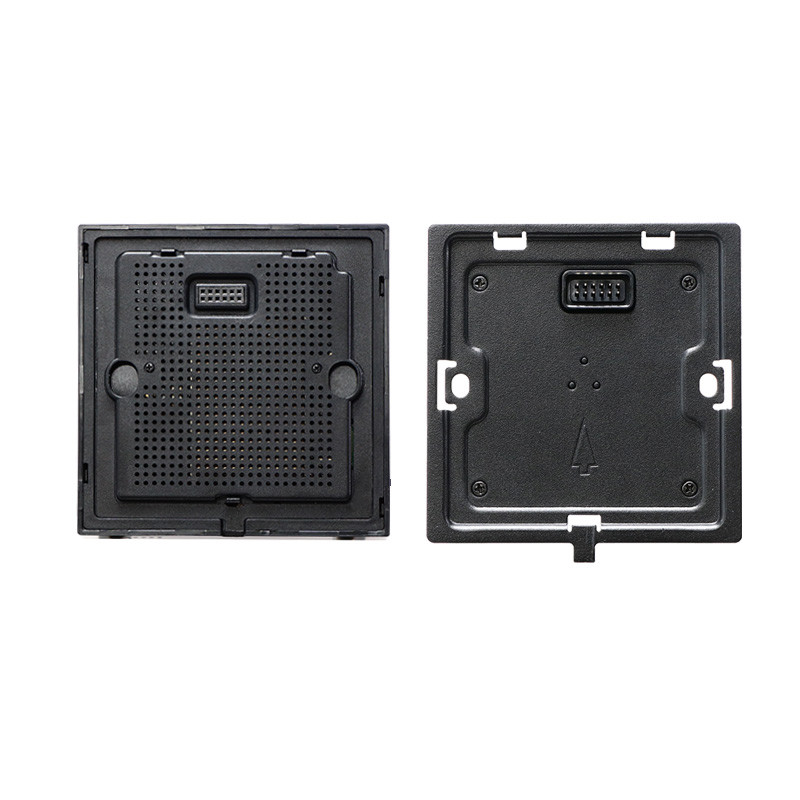

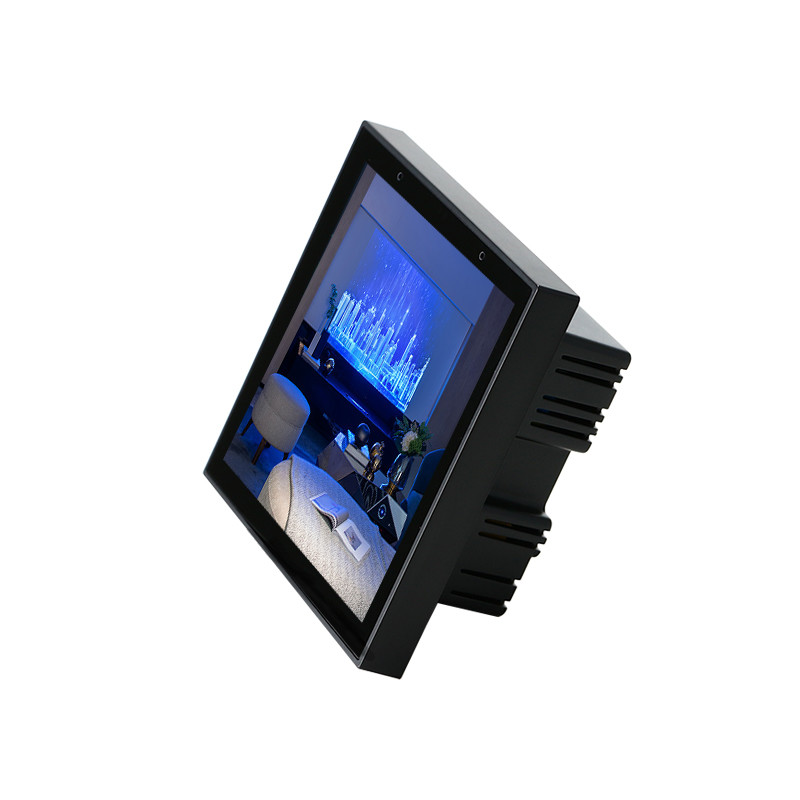

Picture Details

Wall Mount Touch IOT Control Panel 4'' 480x480 For Smart Home
